Q6P01-12PS 6-channel pneumatic slip ring, G1/8" interface, IP51 protection, supports 12 signals or more lines. Pressure -80KPa~0.8MPa, dynamic resistance <10mΩ, realizes entanglement-free hybrid transmission.
Q6P01-12PS 6-channel pneumatic slip ring Features
1. Mixed transmission: can pass through a variety of media, compressed air, vacuum, nitrogen, chemical mixed gas, etc.
2. Size optimization: 54mm outer diameter compact structure, saving internal space of the equipment.
3. Interface diversity: supports G1/8"/M5/G3/8" and other interface customization.
4. High sealing structure: O-ring design, no leakage in -80KPa vacuum environment.
Q6P01-12PS 6-channel pneumatic slip ring parameters
| Electrical parameters | Parameter Value | Gas parameters | Parameter Value |
| Dielectric strength | 500VCA@50Hz,60s | Number of trachea | 6 in 6 out |
| Insulation resistance | ≥500MΩ/300VDC | Pressure | -80KPa-0.8MPaor vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～440VDC/VAC | Rotation speed | 250rpm |
| Wire Specifications | AWG28 Teflon wire (depending on the specific current) | Shell material | Aluminum Alloy |
| Wire length | Default 250mm(Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 | |
|

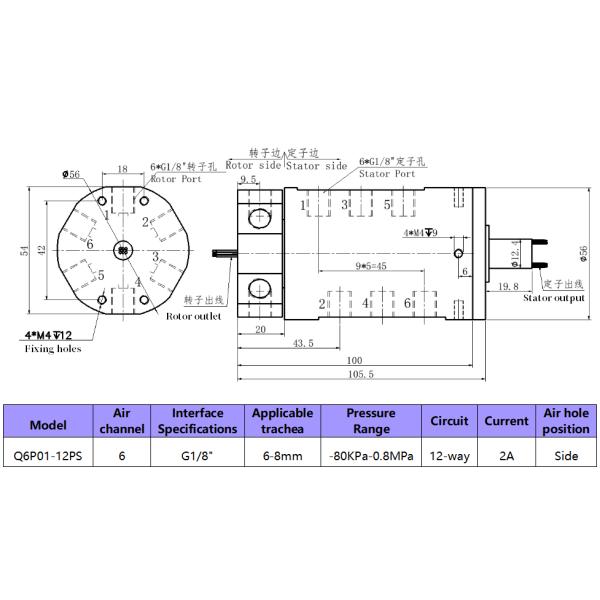

Q6P01-12PS 6-channel pneumatic slip ring drawings

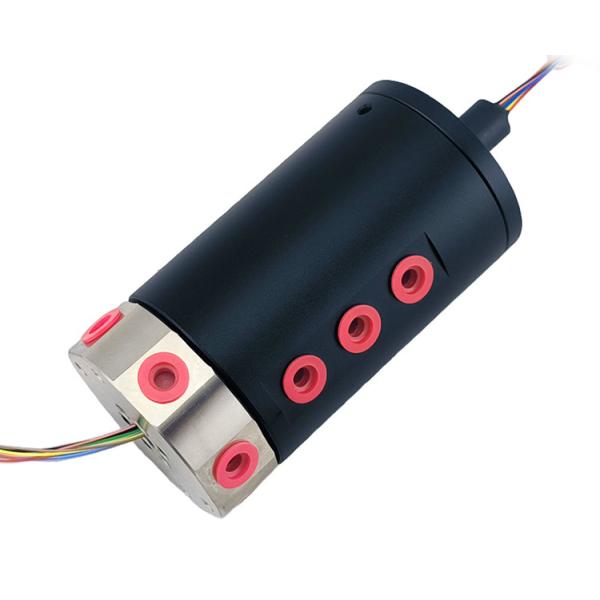

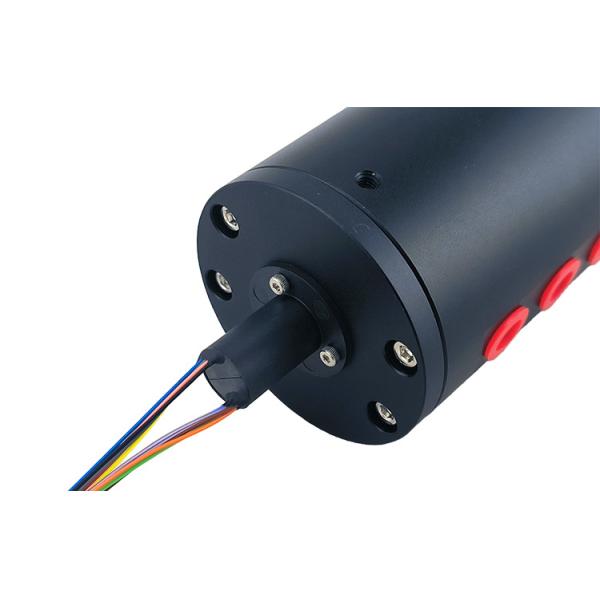

Q6P01-12PS 6-channel pneumatic slip ring pictures
Q6P01-12PS 6-channel pneumatic slip ring Application scenarios
Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
Product Tags:
|
|
Aluminum Alloy Housing 6 Wire Slip Ring Gas Electric Hybrid Transmission Images
|
